Transistor Tester, Mosfet Transistor Capacitor Tester, GBT Withstand Voltage Tester, MOSFET DC Withstand Voltage Tester Voltage Tester With Double-clamp Cable For N/P Type MOSFETs, Diodes

Features:Wide Testing Range: Supports testing of various electronic components including N/P type MOSFETs, diodes, transistors, SCRs, IGBTs, and CCFL lamps.Battery Life and Size: Larger than traditional testers, equipped with a 15000MWH battery for longer battery life.Safety and Interface Design: 25mm wire spacing meets high-voltage safety requirements; features positive and negative test clip ports, a Type-C charging port (compatible with mobile phones), and a left-off, right-on switch design.Core Chip Configuration: Uses imported operational chips, not low-end chips, enabling voltage withstand testing of a wider range of components.High-Quality Cable: Comes with a double-, double-clamp cable, featuring a 4mm injection-molded and a medium-sized red and black fish-shaped clip.Specifications:Product Name: IGBT Withstand Voltage TesterMaterial: ABSColor: OrangeSize: 10*7cm【Adjustable Output Test Voltage】DC 0V-3700V【Output Display Accuracy】0.1%【Adjustable Output Current】50uA-5000uA【Output Voltage and Current Mode】Constant Voltage / Constant Current【Rectifier Maximum Power】5W【Voltage Display Resolution】Four-digit digital tube display, 0.1V below 100V, 1V above 100V【Battery Capacity】1500mAh, Grade A lithium battery【Charging Interface and Charging Current】Standard TYPE-C, 550mA, compatible with ordinary mobile phone chargers【Temperature Protection】Equipped with 80°C over-temperature protection Package Contents:1*IGBT Withstand Voltage Tester1*Wire

• [PACKAGE CONTENTS] Package contains 1 IGBT withstand voltage tester and 1 test wire, providing the basic kit needed to perform DC withstand tests on power devices.
• [WIDE COMPONENT COMPATIBILITY] Supports N/P MOSFETs, IGBTs, diodes, transistors, SCRs and CCFL lamps with adjustable DC output from 0V to 3700V and current range 50uA to 5000uA for component testing.
• [PRECISION OUTPUT & DISPLAY] Built-in control modes for constant voltage and constant current, 1% output display accuracy, and a four digit readout with 0.1V resolution below 100V for clear, repeatable measurements.

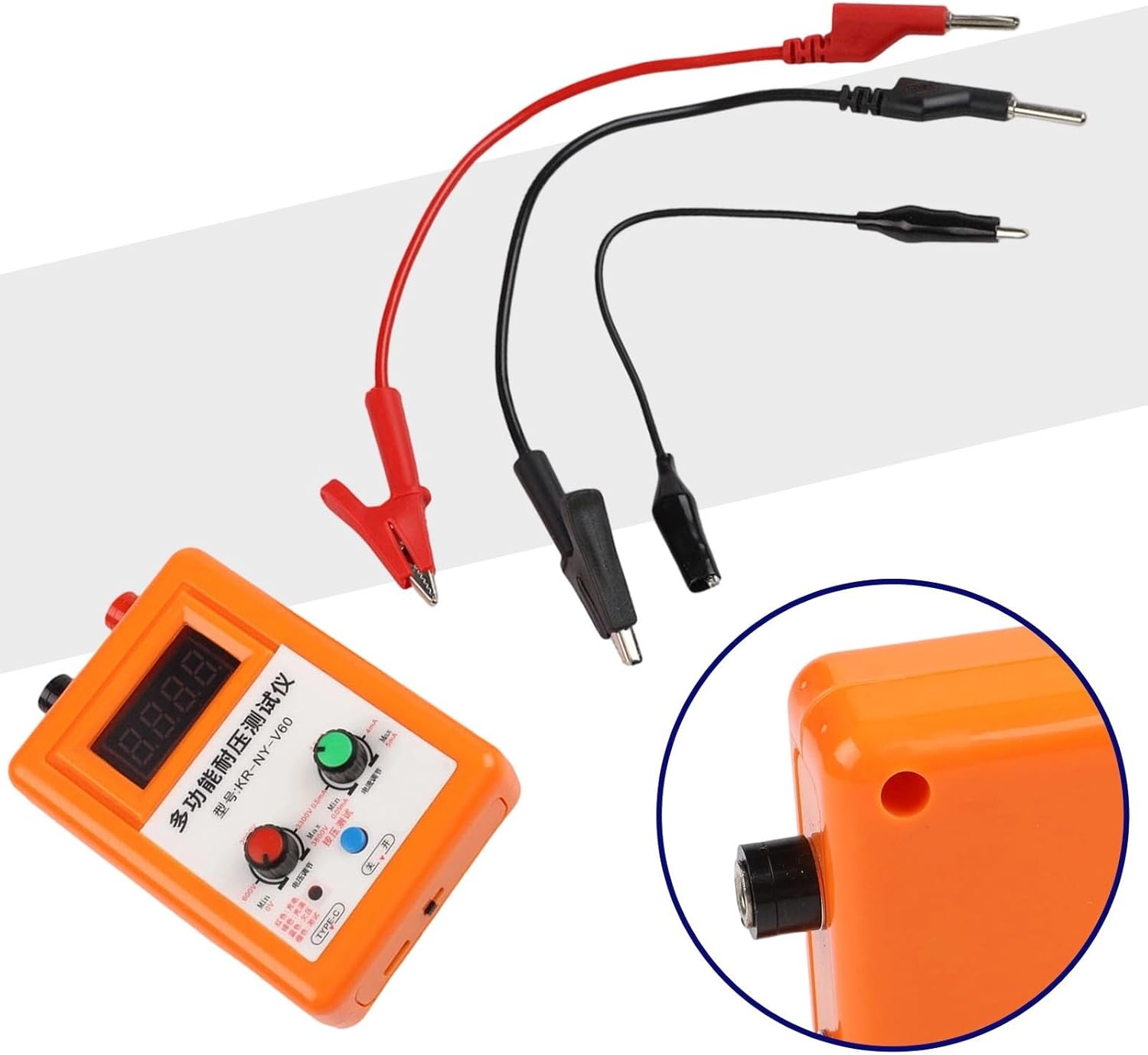

• [SAFETY & CONNECTIVITY] 25mm wire spacing meets high voltage safety requirements, separate positive and negative clip ports, left-off right-on switch, and rugged 4mm injection molded fish shaped clips for secure connections.

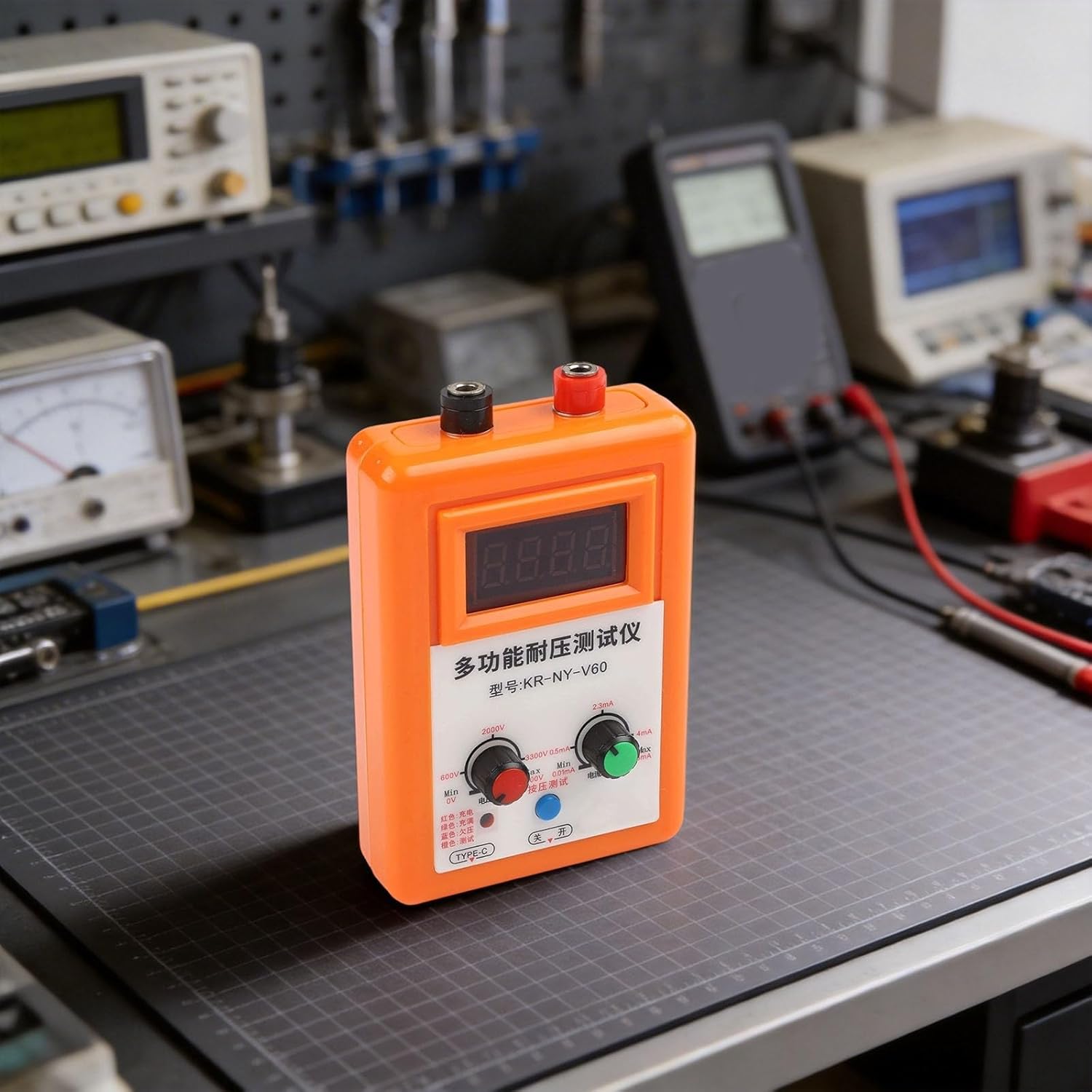

• [PORTABLE DESIGN & POWER] Compact orange ABS housing (approx 10 x 7 cm) with 1500mAh Grade A lithium battery and Type C 550mA charging for on-bench or field use; temperature protection at 80°C protects the device during demanding tests.
